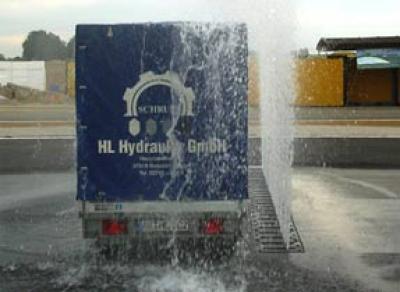

Image 1

The water obstacles consist of the following components:

• Concrete cassette
• Galvanized steel frame (on top of the cassette)
• Unit of water obstacle (hanging)
• Cover of the unit

Optional:

Depending of the design of the driving area an after wetting system can be installed.
This ensures proper wetting of the following distance.

• No trace heating in winter time
• Direct recycling of obstacle & rain water into the cassette.
• Efficiency - 1 obstacle (1m) = 0,75kW
  we use only the power you need for the actual "picture".
• Flexibility - water obstacles are not only water walls:
  you can design different "pictures" to optimize your training
  - pedestrians, cars, trucks in dynamic versions cross the area
  - gates in different widths and positions
  - changing for every task or training
• Total shut down of a water obstacle area is not possible
  (if the driving center haven't a shut down)
• 2 heights of obstacles are useable (2.0m & 3.0m)
  The height is fixed by the nozzle type of the obstacle.
  The nozzles are changeable every time.
